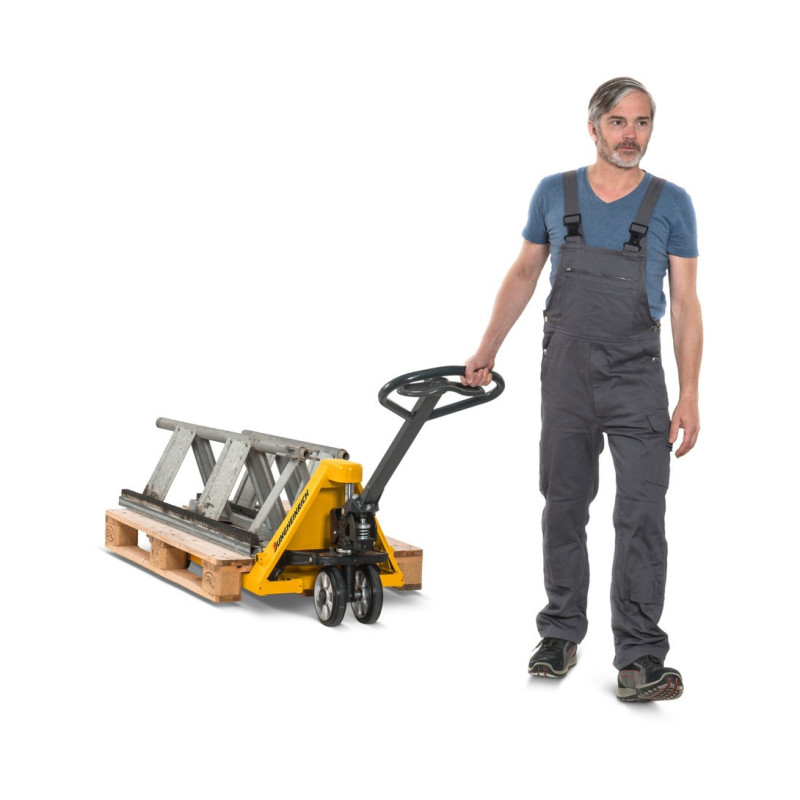

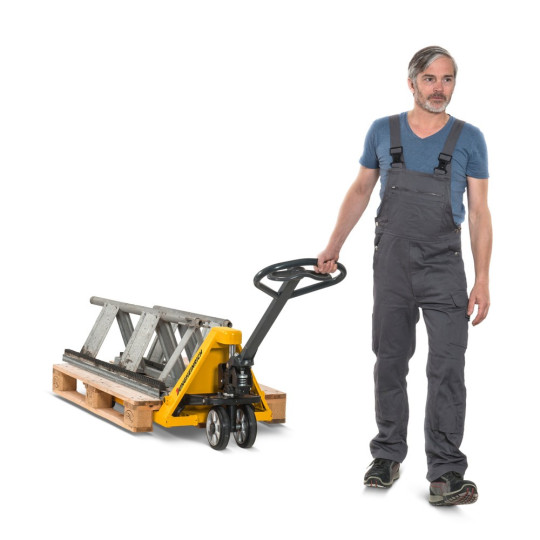

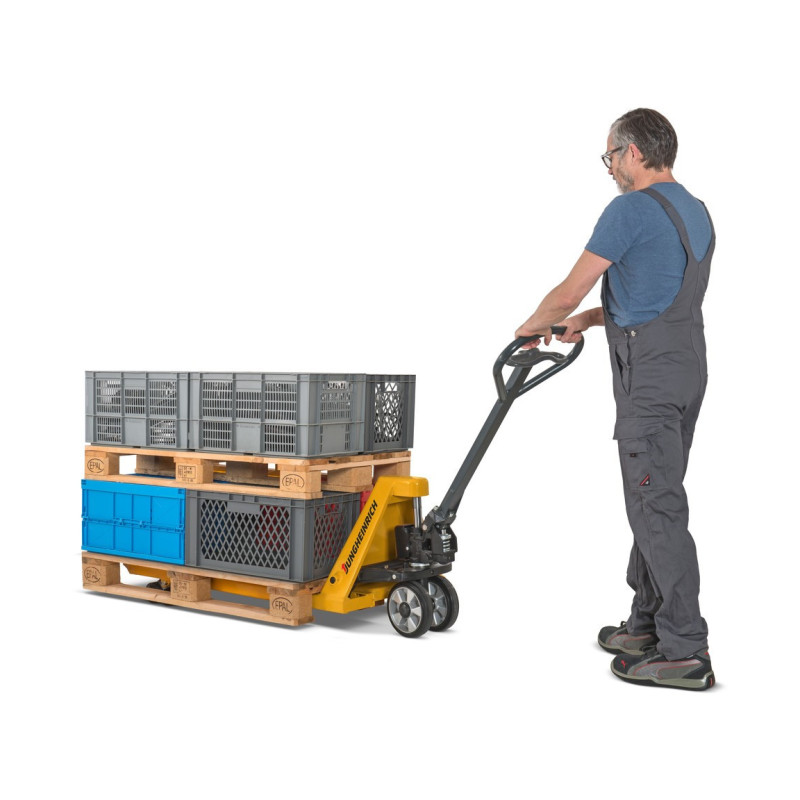

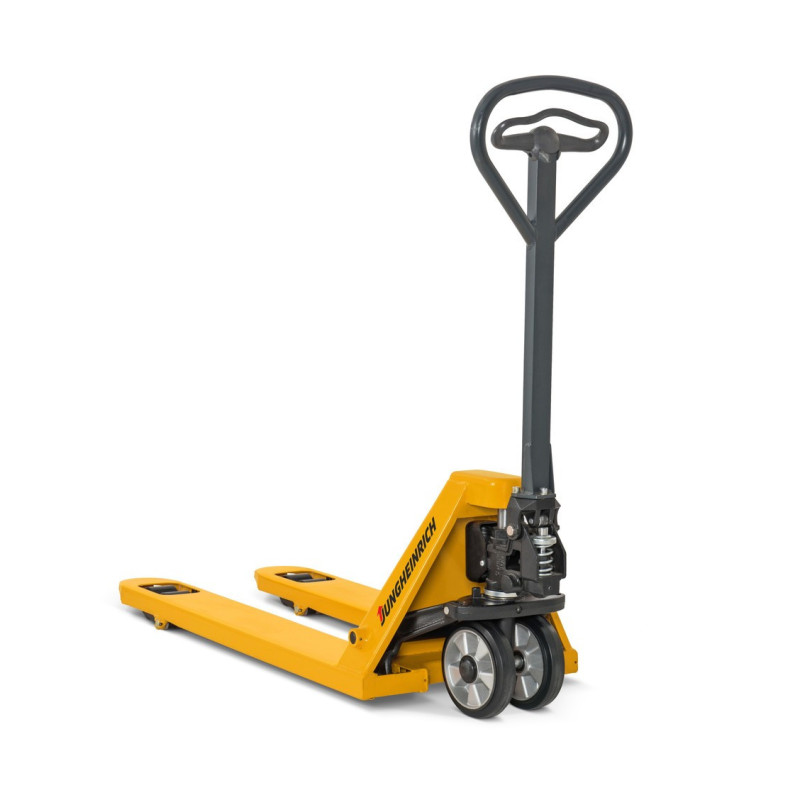

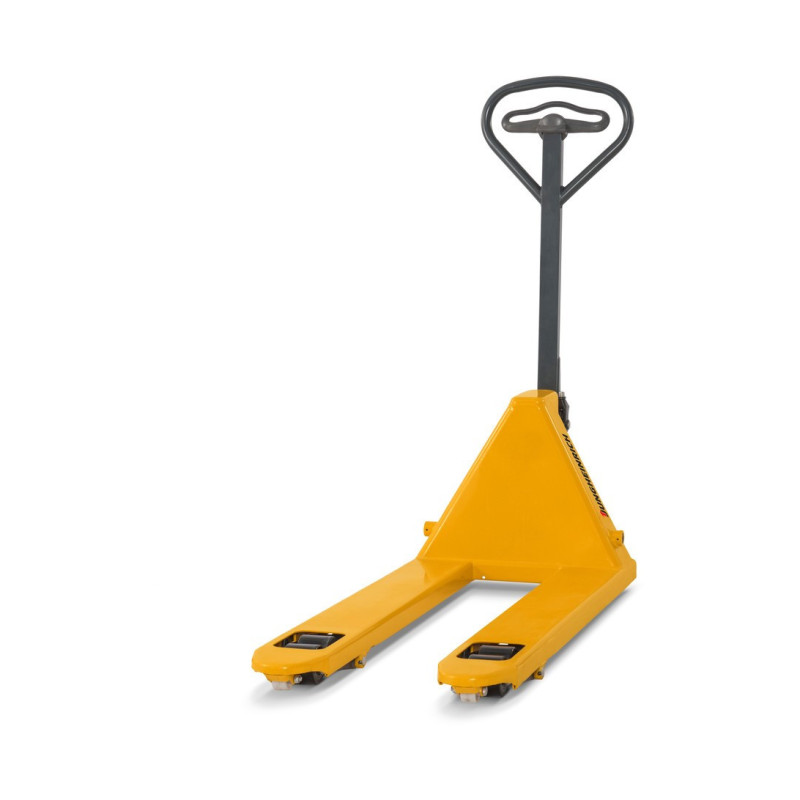

Jungheinrich AM 20 hand pallet truck, load capacity 2000 kg, fork length 1150 mm, solid rubber / polyurethane
Jungheinrich AM 20 hand pallet truck, load capacity 2000 kg, fork length 1150 mm, solid rubber / polyurethane
Jungheinrich AM 20 hand pallet truck, load capacity 2000 kg, fork length 1150 mm, solid rubber / polyurethane
Jungheinrich AM 20 hand pallet truck, load capacity 2000 kg, fork length 1150 mm, solid rubber / polyurethane
Jungheinrich AM 20 hand pallet truck, load capacity 2000 kg, fork length 1150 mm, solid rubber / polyurethane
Jungheinrich AM 20 hand pallet truck, load capacity 2000 kg, fork length 1150 mm, solid rubber / polyurethane
Jungheinrich AM 20 hand pallet truck, load capacity 2000 kg, fork length 1150 mm, solid rubber / polyurethane
Jungheinrich AM 20 hand pallet truck, load capacity 2000 kg, fork length 1150 mm, solid rubber / polyurethane
Jungheinrich AM 20 hand pallet truck, load capacity 2000 kg, fork length 1150 mm, solid rubber / polyurethane
Jungheinrich AM 20 hand pallet truck, load capacity 2000 kg, fork length 1150 mm, solid rubber / polyurethane
Jungheinrich AM 20 hand pallet truck, load capacity 2000 kg, fork length 1150 mm, solid rubber / polyurethane
Jungheinrich AM 20 hand pallet truck, load capacity 2000 kg, fork length 1150 mm, solid rubber / polyurethane
Jungheinrich AM 20 hand pallet truck, load capacity 2000 kg, fork length 1150 mm, solid rubber / polyurethane
Jungheinrich AM 20 hand pallet truck, load capacity 2000 kg, fork length 1150 mm, solid rubber / polyurethane
Jungheinrich AM 20 hand pallet truck, load capacity 2000 kg, fork length 1150 mm, solid rubber / polyurethane
Jungheinrich AM 20 hand pallet truck, load capacity 2000 kg, fork length 1150 mm, solid rubber / polyurethane
2000 kg
2000 kg
1150 mm
1150 mm
85 - 200 mm
85 - 200 mm

Description

Jungheinrich premium quality – now with 2000 kg capacity

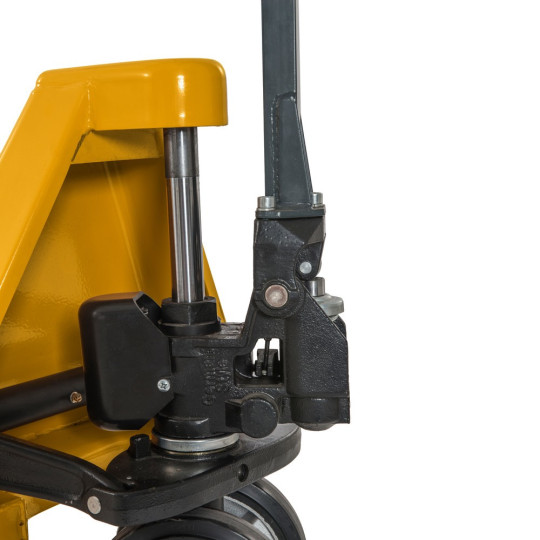

The Jungheinrich AM 20 hand pallet truck with 2000 kg capacity combines proven quality with impressive equipment levels. The patented, ergonomic Jungheinrich operating concept allows the tiller to be controlled from any position and is equally well suited to right and left-handed users. All functions can be easily operated with one hand. Thanks to the special lowering valve, sensitive loads can be set down with utmost control and precision.

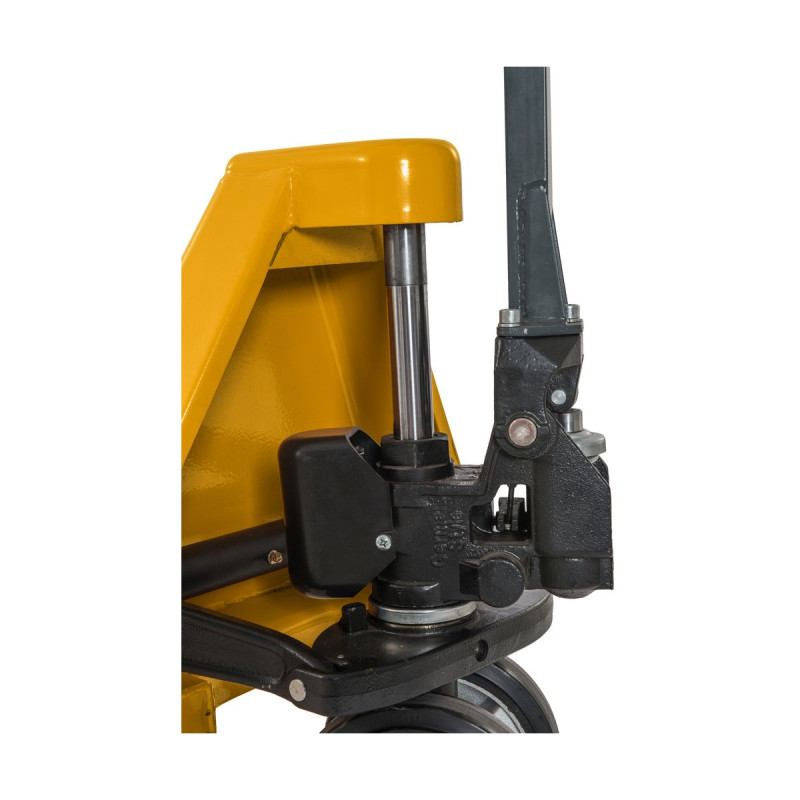

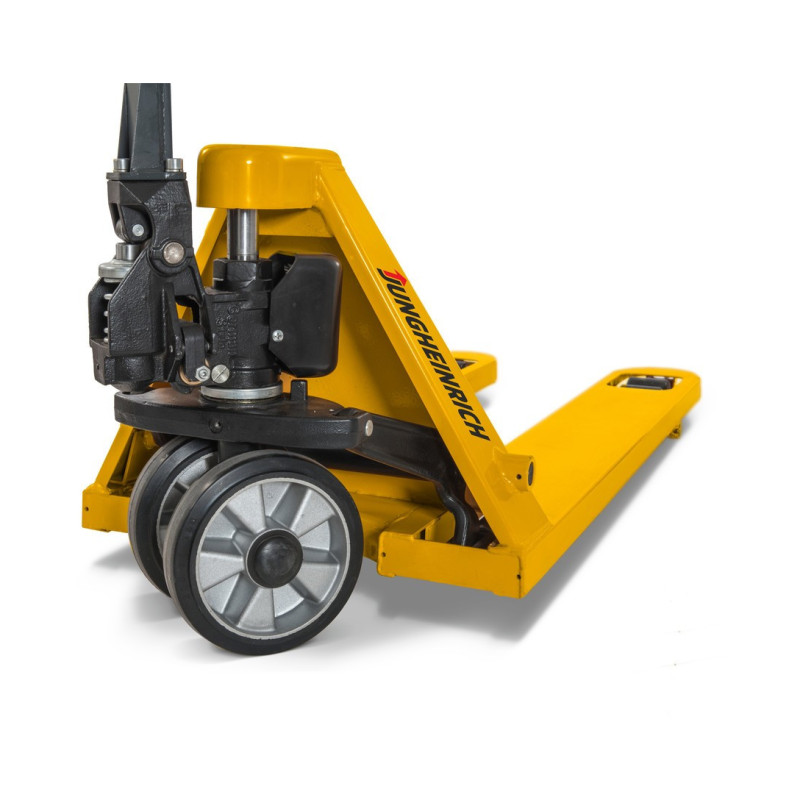

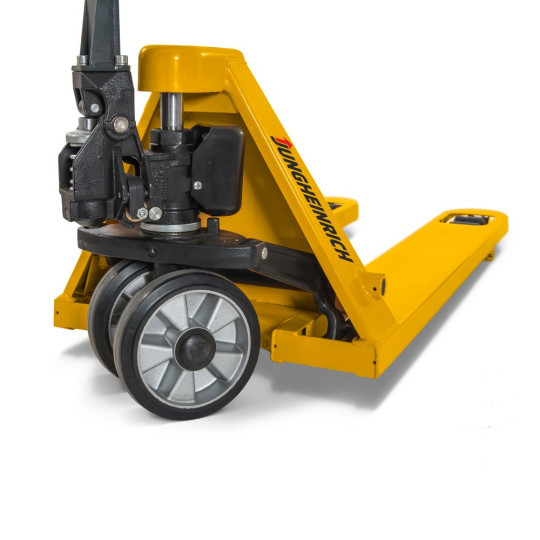

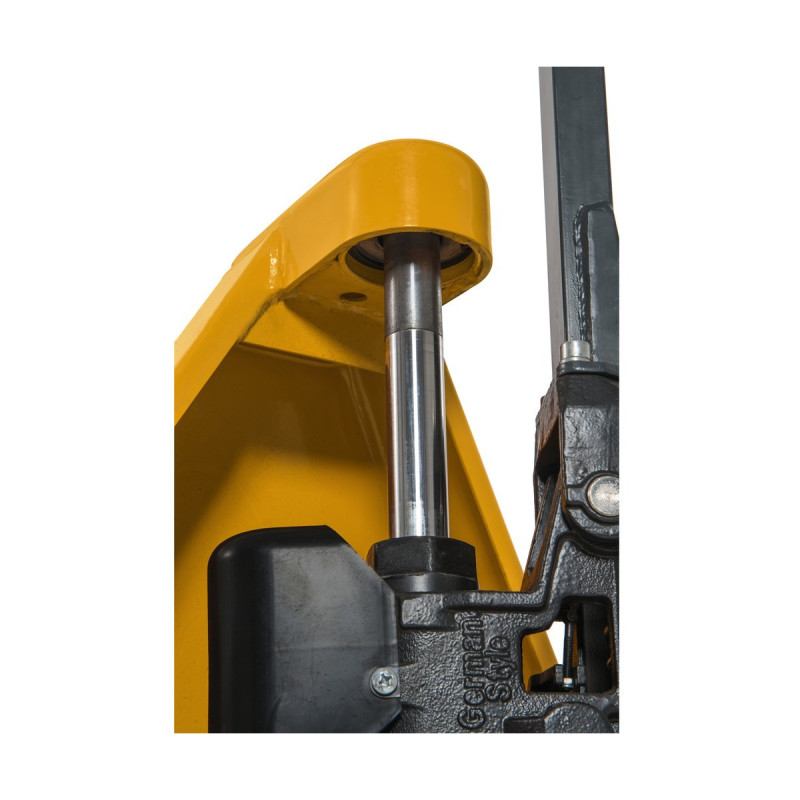

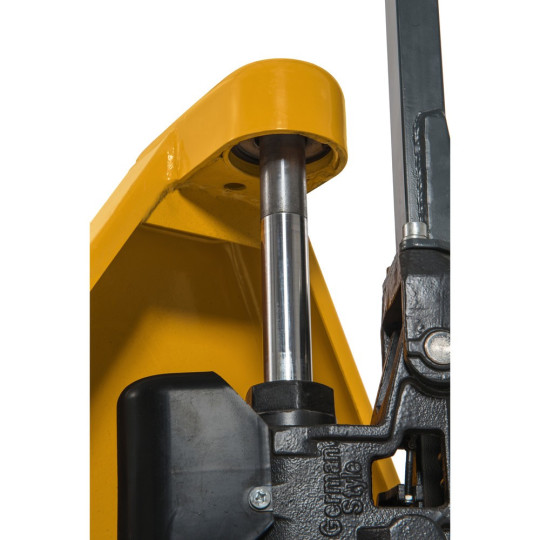

The AM 20 features a powerful hydraulic pump with an external hydraulic reservoir. The optimised, maintenance-free hydraulic system minimises the required pump force. The piston rod is mounted on ball bearings for reduced rotational resistance, easy steering and lower wear. Entry and exit rollers ensure smooth running over thresholds and easy insertion into pallets.

The hand pallet truck does not require any maintenance as the connections are lubricated for life. The outstanding stability and durability of the product is ensured by heavy-duty steel, a sophisticated design and a welded tiller mount. The sectional steel frame with its high-quality welded construction is torsion-free and extremely hard-wearing.

The Jungheinrich AM 20 hand pallet truck with 1150 mm fork length and 2000 kg capacity is available in different wheel configurations. Depending on the ground conditions and specific application, you can choose between a range of roller materials. You can also opt for single or tandem fork rollers.

Durable, reliable and proven in continuous daily use – the Jungheinrich AM 20 hand pallet truck with 1150 mm fork length and 2000 kg capacity is the ideal partner for your everyday pallet transport. Order the pallet truck from our shop in your chosen configuration.

Capacity
2000 kg
Manufacturer
Jungheinrich
Model
AM 20
In stock
Yes
Fork length
1150 mm
Turning radius
1275 mm
Steering wheel diameter
200 mm
Aisle width
1743 mm
Steering wheel width
50 mm
Control panel
Two-handed
Fork width
160 mm
Lowering speed with/without cargo
0,1 / 0,06 m/s
Drive
Manual
Overall length
1540 mm
Overall width
540 mm
Fork height
48 mm
Fork roller material
Polyurethane (PU)
Steering wheel material
Solid rubber
Fork roller equipment
Single
Load centre
600 mm
Lift
115 mm
Face of forks length
390 mm
Lift range
85 - 200 mm
Tiller RAL colour
RAL 7016 anthracite grey
Fork roller width
93 mm
Tiller surface
Power-coated
Tiller Height
1230 mm
Chassis surface
Power-coated
Pallet truck material
Steel
Ground clearance
37 mm
Lift type
Hand pallet trucks
Fork support width
540 mm
  • Topseller

    • Jungheinrich AM 20 hand pallet truck, fork length 1150 mm, C/GV

    Tried-and-tested Jungheinrich quality – now with 2000 kg capacity

    • Ergonomic control element that can be operated with either hand
    • Powerful hydraulic pump with external hydraulic reservoir
    • Easy to steer thanks to ball-bearing mounted piston rod

    €417.00
    €396.15 You Save 5%
    Tax excluded
    Limited offer until: 2026/11/01 Days remaining: 15
    51576473
    Status: In stock

    Delivery: within 2-3 working days
